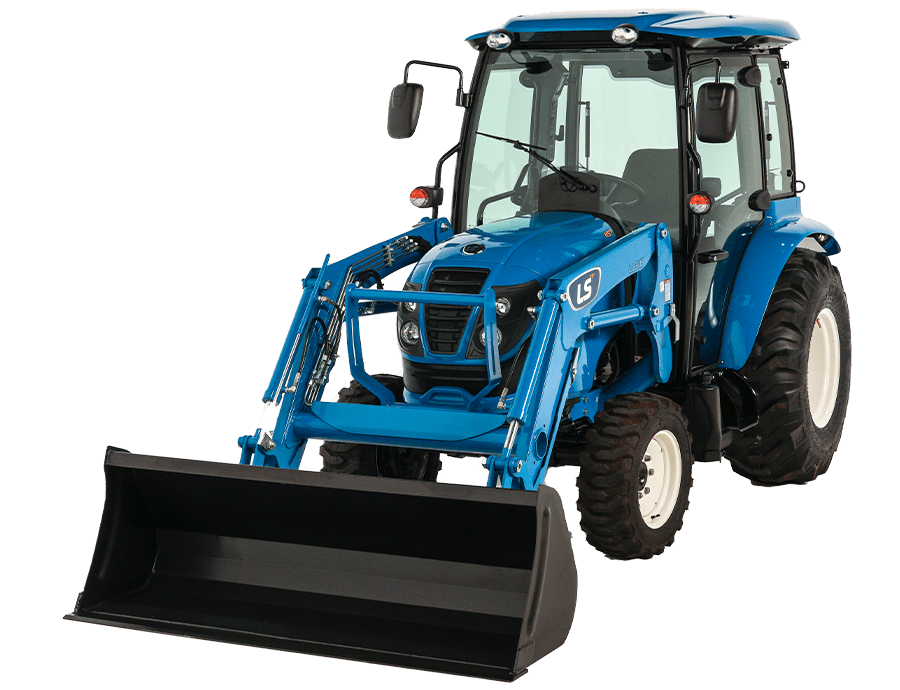

MT2E-Cab




The MT235 EC (35HP) features an economy cab with a substantial number of features. Features include a premium cloth seat, rubber floor mat, and more. A 12X12 synchro-shuttle transmission is standard.

dumbbell iconLOADER LIFT CAPACITY 2,178 – 2,185 lbs. tractor iconHITCH LIFT 1,808 lbs.
lightning iconENGINE HP 35.0 HP tractor wheel iconPTO HP 29.7 HP



MT235EC – 35HP

*Exact model shown in 360° view may vary

Left And Right Cab Doors

Premium Seat Providing Access To Either Side Of The Cab

3 Range Hydrostatic Transmission

Provides Comfort And Excellent Controllability Of Tractor Movement

3 Standard Dual Mirrors

Provide Added Visibility

3 Standard Drawbar

Provides Value And Enables Trailering etc.

3 Ground Level Fueling

Provides Easy Access

Standard Grille Guard With Loader

Provides Added Protection

High-Capacity Loader

With High Lift Height And Standard Skid Steer Coupler

Standard Integrated Joystick

Mid Mount Valve, Providing Deluxe Fit And Finish

Electronic PTO

For Ease Of Use

ENGINE

  • Type: Vertical Water-Cooled 4Cycle Diesel Engine
  • Model (Tier 4): L3C19-T
  • Engine HP (Gross): 35
  • PTO HP: 29.7
  • Rated Speed (RPM): 2,600
  • Displacement (cu. in.): 114.7
  • Fuel Tank Capacity (gal): 12.4
  • Alternator (A-V): 12V – 70

DRIVE TRAIN

  • Transmission: Synchro shuttle
  • No. of Speeds: F12 X R12 (GEAR)
  • Brakes: Wet, Multi-Disc
  • Steering: Hydrostatic Power Steering

PTO

  • Type: Independent
  • Rear RPM: 540 (Standard)
  • Mid RPM: 2,000 (Option)

HYDRAULIC SYSTEM

  • Control System: Position/Draft
  • Implement pump (gpm): 8.2
  • Steering pump (gpm): 4.1(GEAR)
  • Steering: Hydrostatic Power Steering
  • Total flow (gpm): 12.3 (GEAR)
  • Category, 3 pt hitch: CAT 1
  • Hitch Lift capacity (lb): 1,808
  • Remote Valves: Option

DIMENSION

  • Overall length Frame to Link (in.): 128.3
  • Wheelbase (in.): 69
  • Overall width with tires (in.): 62
  • Height to top of ROPS(in.): 86.6

TIRE SIZE

  • Ag Front/Rear: 7 – 14 / 11.2 – 24
  • IND Front / Rear 25 x 8.5 – 14 / 43 x 16 – 20
  • Turf Front / Rear 25 x 8.5 – 14 / 41 x 14 – 20

WEIGHT

  • Total weight without ballast (lbs).: 3,589

Telescopic Link Arms
Side Step – RH
7 Pole Connector
Horn
Sun Screen
Interior Rear View Mirror
External Position Lever
Beacon Lamp
Work Light
Audio Assy – without Bluetooth
Audio Assy – Bluetooth
Rear Wiper
Mid PTO
Remote Valve – 2 Pair (1 STD. 1 Detent)

FRONT END LOADER – LL3116

  • Bucket (in): 66
  • Maximum Lift Height (in): 92.7 – 94.4
  • Clearance with Attachment Dump (in.) 61.7 – 64.4
  • Reach at Maximum Height (in): 15 – 15.4
  • Maximum Dump Angle (deg.): 48 – 52
  • Maximum Rollback Angle (deg.): 43-41
  • Digging Depth (in): 4.3
  • Overall Height in Carry Position (in): 49.1 – 51.4
  • Lift Capacity(At Pivot pin) (lbs.) 2,178 – 2,185
  • Breakout Force(At Pivot pin) (lbs.): 3,450 – 3,612
  • Approx. Weight (Loader w/o Bucket) (lbs.): 717

BACKHOE – LB2104

  • Digging Depth (in): 89.7
  • Reach From centerline of swing Pivot (in): 125.2
  • Loading Height (in): 72.4
  • Swing Arc (deg.): 180
  • Transport Height (in): 83.5
  • Bucket Rotation (deg.) :180
  • Stabilizer Spread (Down Position) (in): 68.7
  • Stabilizer Spread (Up Position) (in): 46.4
  • Bucket Digging force (lbs.): 2,679
